UP TO
1
Stations

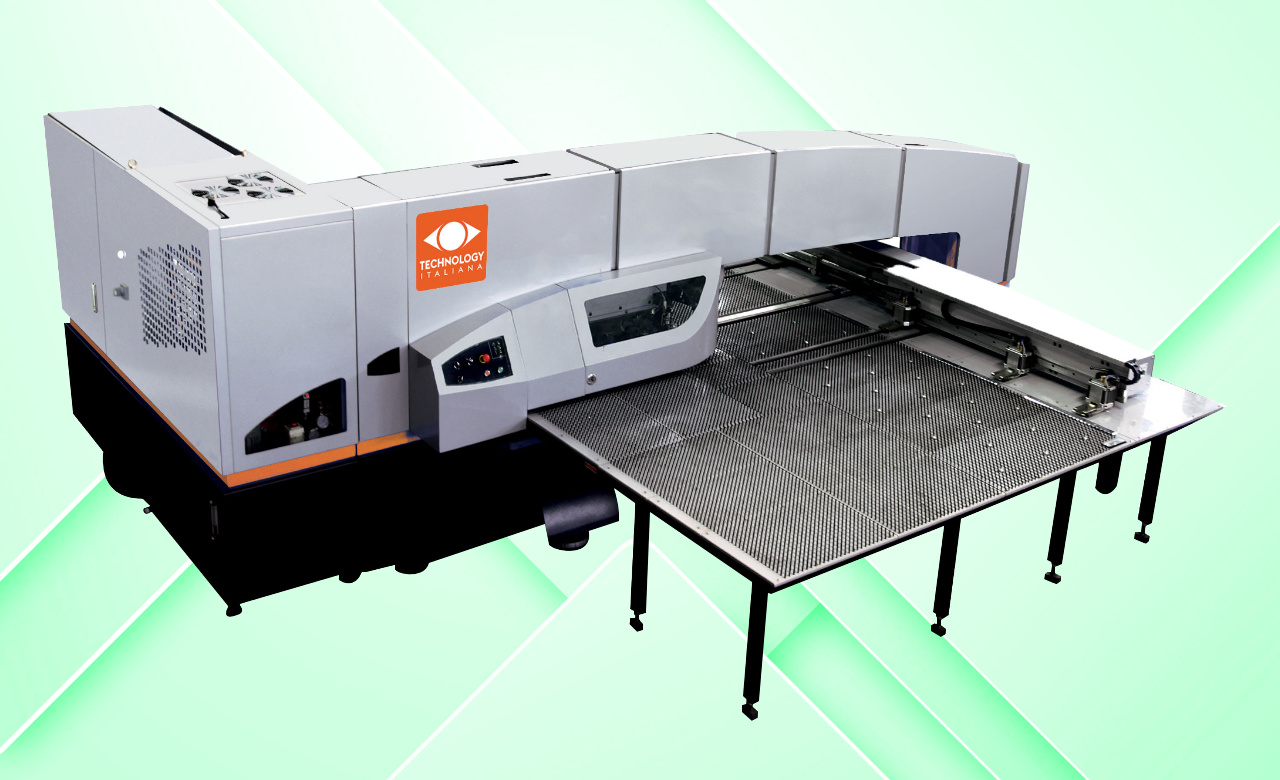

The TLX Multi H turret punch presses combine the traditional turret system with Multi-tool technology to easily increase the number of tools. The powerful servo-hydraulic system allows working sheet metal up to 6mm thick.
With the new TLX turret punch presses, you can now perform a host of new machining operations, from fast feed functions (wheel tools) to new threading systems.
Using these new machining operations allows you to increase your earnings.
With a simple connection to the Internet, we can securely perform a complete error diagnosis, drastically reducing machine downtime.
The new servo-electric TLX H Multi due to its technologies can be integrated into Industry 4.0 systems.

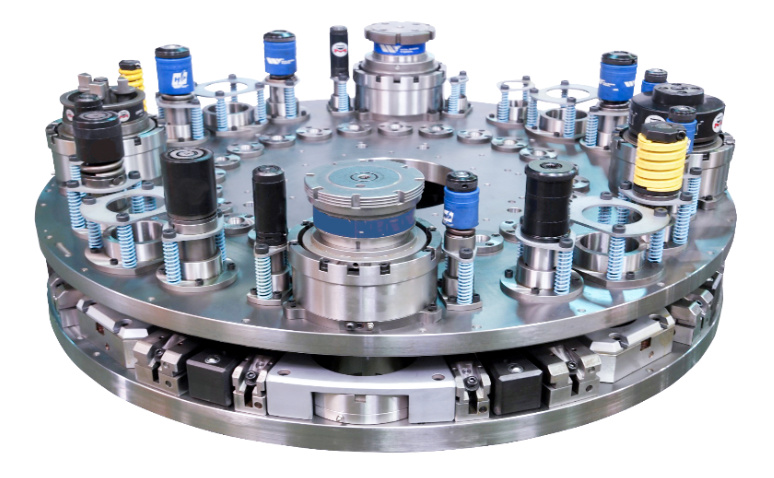

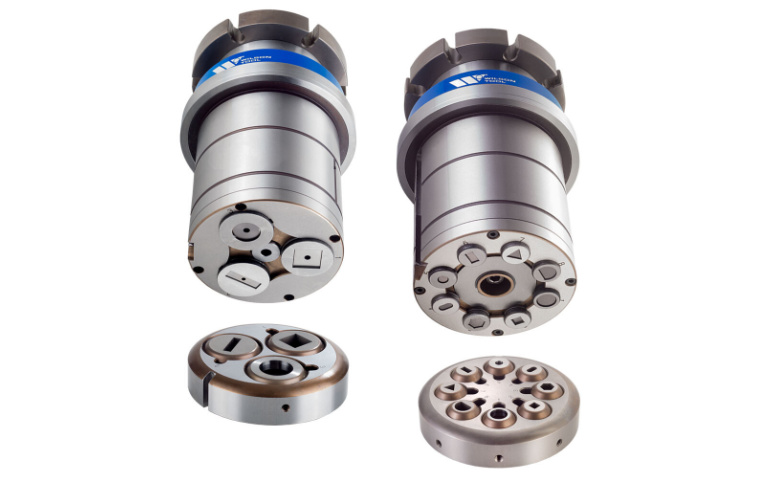

Multi-tools increase the number of stations and the flexibility of the machine. TLX H Multi turret punch presses can be equipped with Multi-tools with rotating tools for type ‘D’ stations. This allows up to 52 tool stations.
Thanks to the brushes on the die holders you can achieve the highest quality without ruining your parts.
Thanks to the interchangeable bushing system, the accuracy of your turret will always be like the first day.
TLX H Multi | U.M | 24H 2510 |
Max. Punching force | Ton | 20 |
Field of work | mm | 1250 x 2500 |
Max. workable thickness | mm | 6 |
Simultaneous x-Y axis movement speed | m/min | 100 |
Number of stations | n° | 24~52 |
Auto-index stations | n° | 4 |
Punching accuracy | mm | +/- 0.1 |
Weight | Kg | 14000 |
Turret Configuration | ||
Type A stations - 1/2" (12,7 mm) | n° | 8 |
Type B stations - 1 - 1/4" (12,8 - 31,7 mm) | n° | 8 |
Type C stations - 2" (31,8 - 50,8 mm) | n° | 4 |
Auto-index stations | ||
Type D stations - 3 - 1/2" (50,9 - 88,9 mm) | n° | 4 |
