High power and low energy consumption
1
Tons OF POWER
1
Kw STAND-BY CONSUMPTION
1
MONTHS WARRANTY
TecnoPunch Alpha
LITTLE BIG PUNCHING MACHINE
The ideal machine to enter the world of punching, at affordable prices. It is the evolution of Tecnumerik: the advanced CNC functions and the rotating head allow the orientation of any type of tool, as well as the possibility of using multi-tools, drag tools for cutting, ribs and off-set, and threader.
The Speedy Setup system, which allows manual tool change in just 12 seconds, is a feature that makes it unique in the single-punch market.
MODEL
- TP Alpha
- Max. punching force
- Maximum thickness
- Working size (without reposition)
- Working size (with reposition)
- Alpha 256 U.M.
- 250 kN
- 6.5 mm
- 1250 x 1500 mm
- 1250 x 3000 mm
The versatility of
TP Alpha

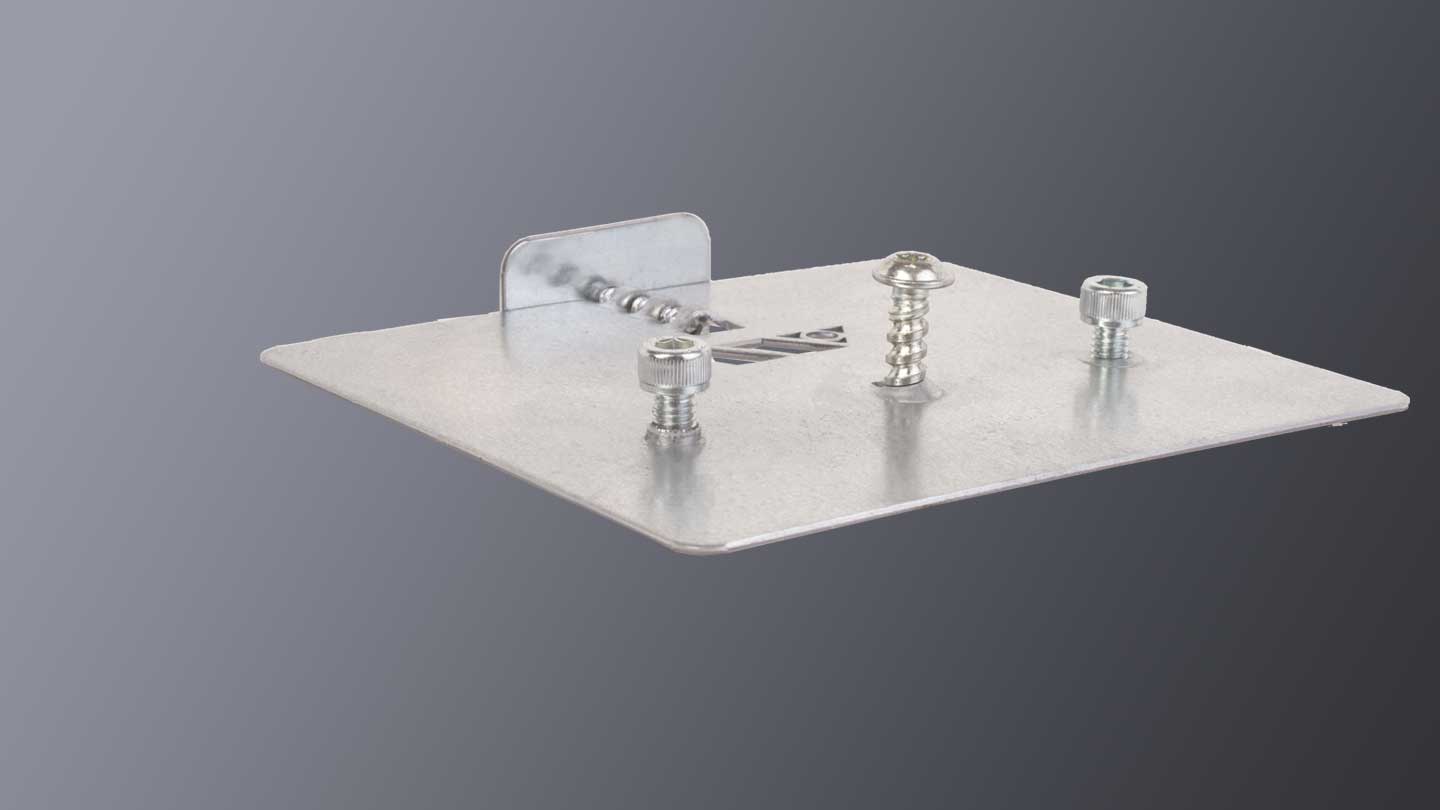

You can carry out simple processing operations such as perforated sheet metal (grids), fine nibbling, copper bars and slits, but also more complex works such as ribs, lowering and threading, without interrupting the activities of larger plants (e.g. laser cutting or automatic punching machines).
Get a quote or contact us
...
We can provide you with suggestions and explanations in English, Turkish, Russian.
Improve the sheet metal cutting process

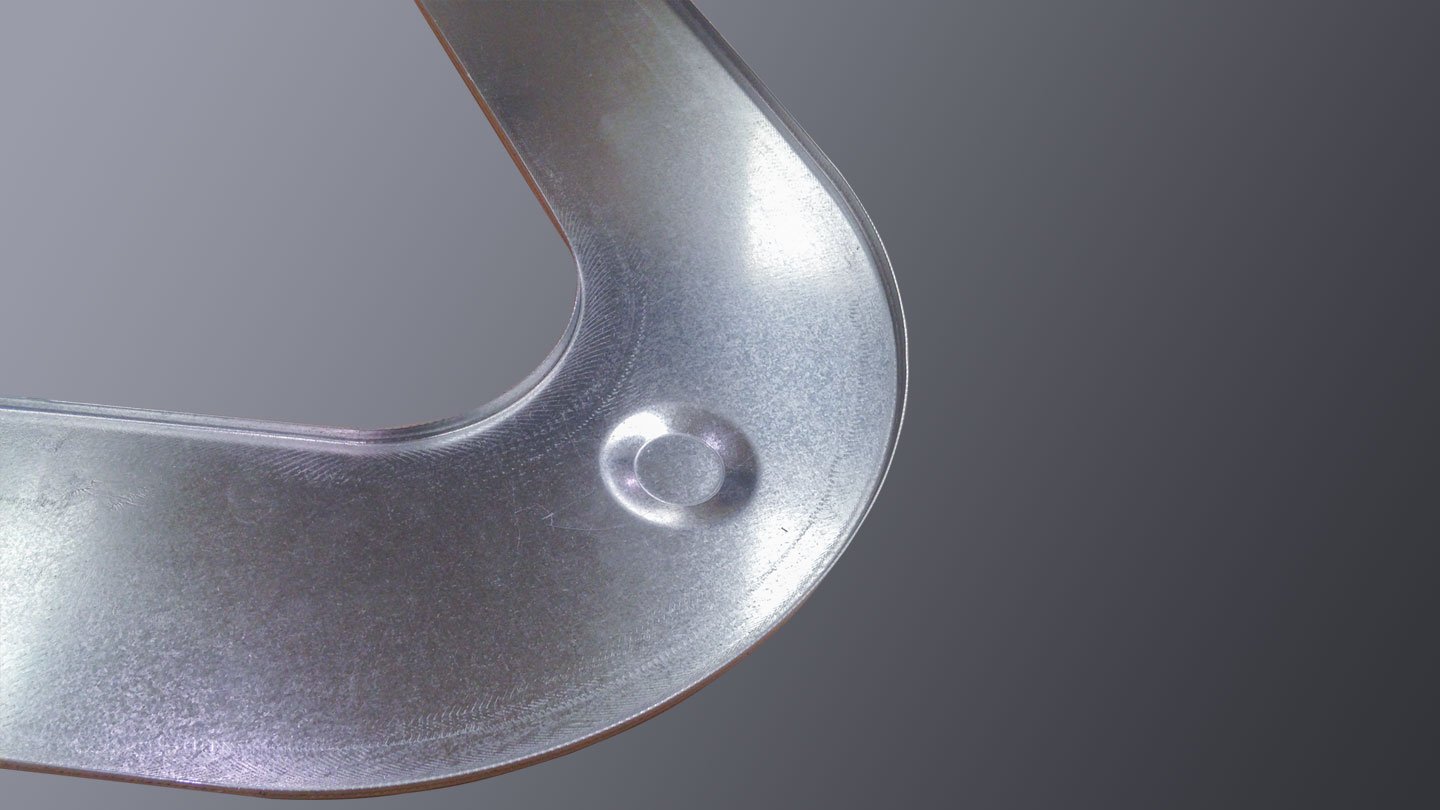

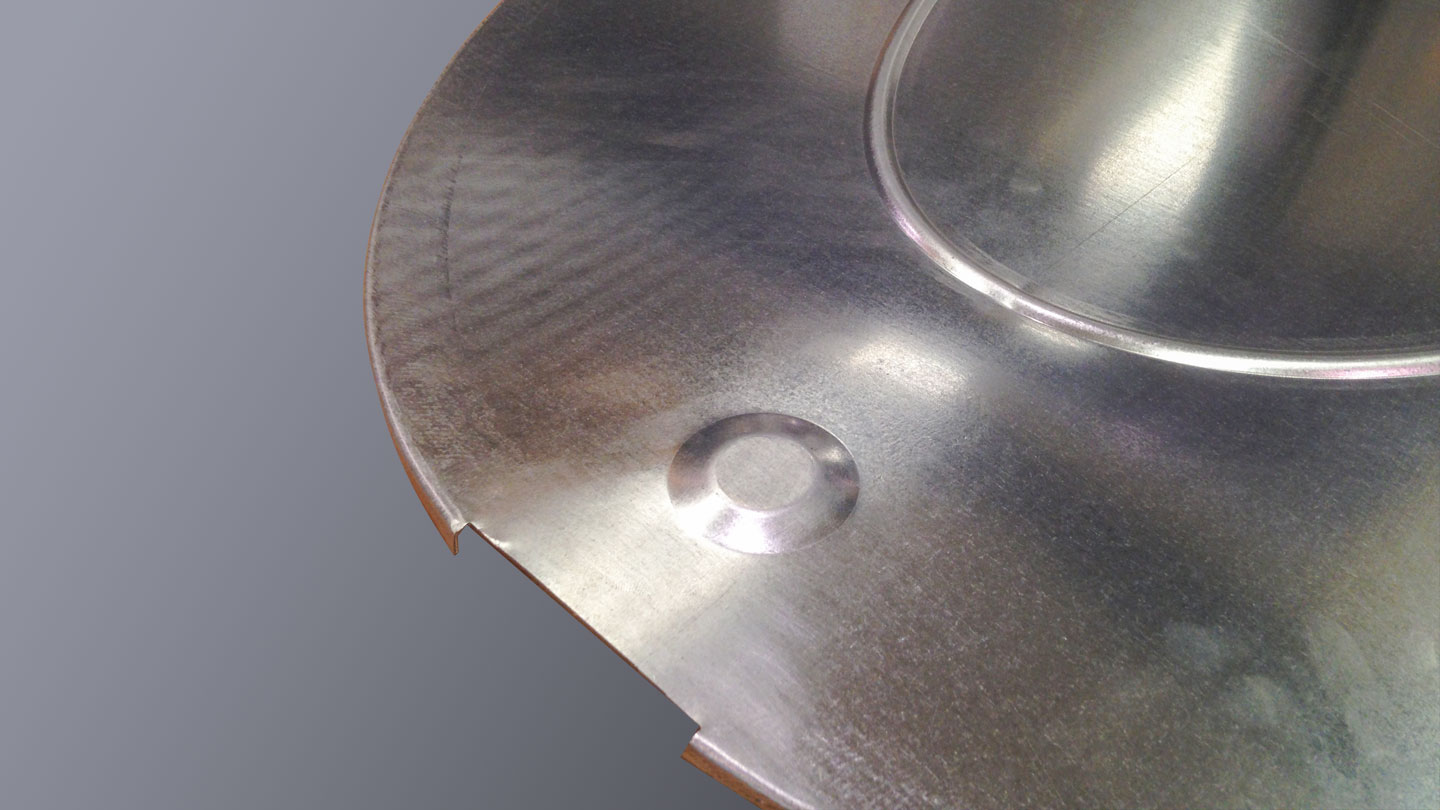

With TP ALPHA you can go beyond the simple sheet metal cutting since you can easily implement deformation works such as slots, countersinks, logos, embossing. The TP Alpha can be employed for small/medium productions or combined with other cutting systems such as lasers and automatic punching machines.
Highest connectivity and integration
Teleassistance
With a simple Internet connection we can safely carry out a comprehensive error diagnosis, drastically reducing machine downtime.
Industry 4.0 Ready
Thanks to its innovative technologies, the new servo drive TP Alpha can be integrated into Industry 4.0 systems.
Small and productive

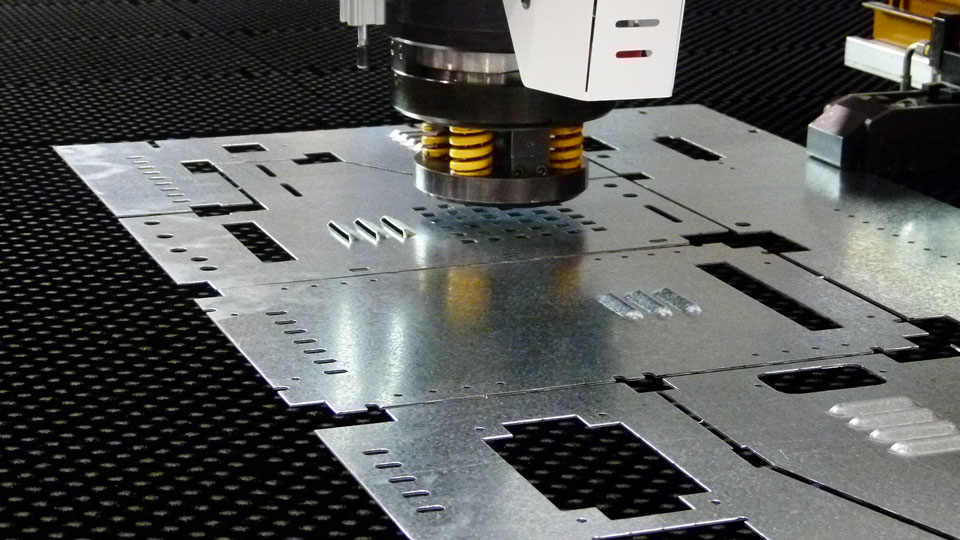

Thanks to the full rotation of all tools (auto-index technology), the TP Alpha allows you to perform complex operations and carry out nesting of elaborate parts.

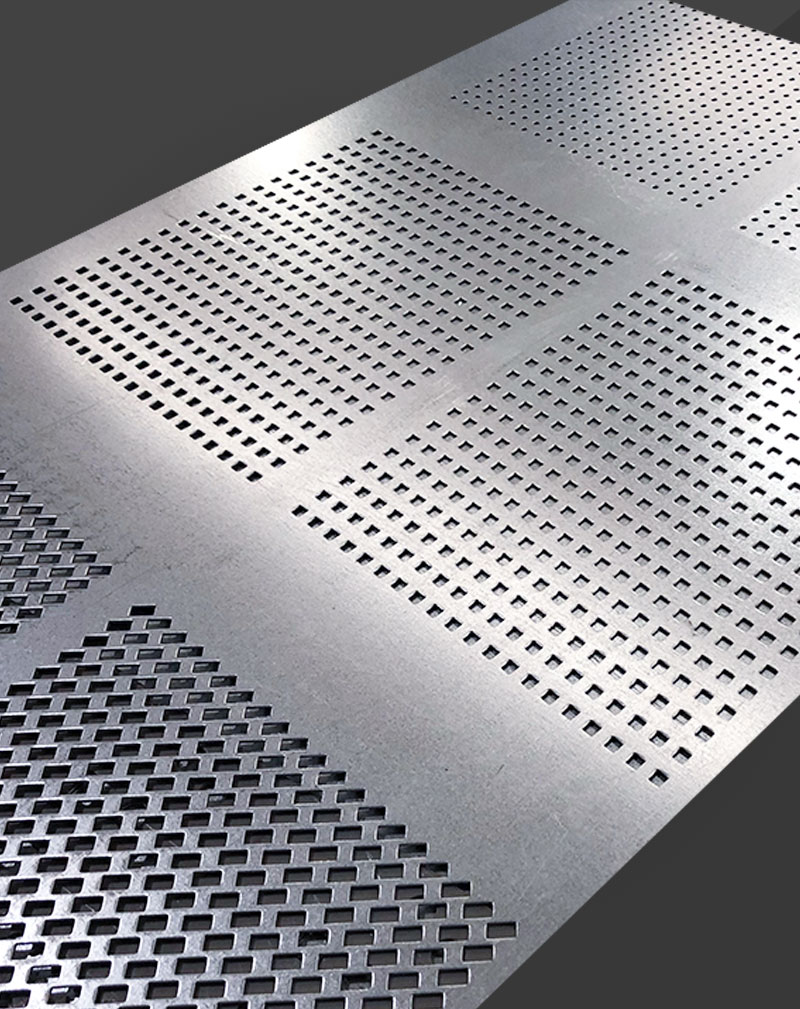

Low cost perforated metal sheets
With TP Alpha you can manufacture perforated sheets (grids) quickly and cost-effectively. With punching technology you can also realize more sophisticated shapes, but the speed of performance will always be the same.
Small outside. Big inside.

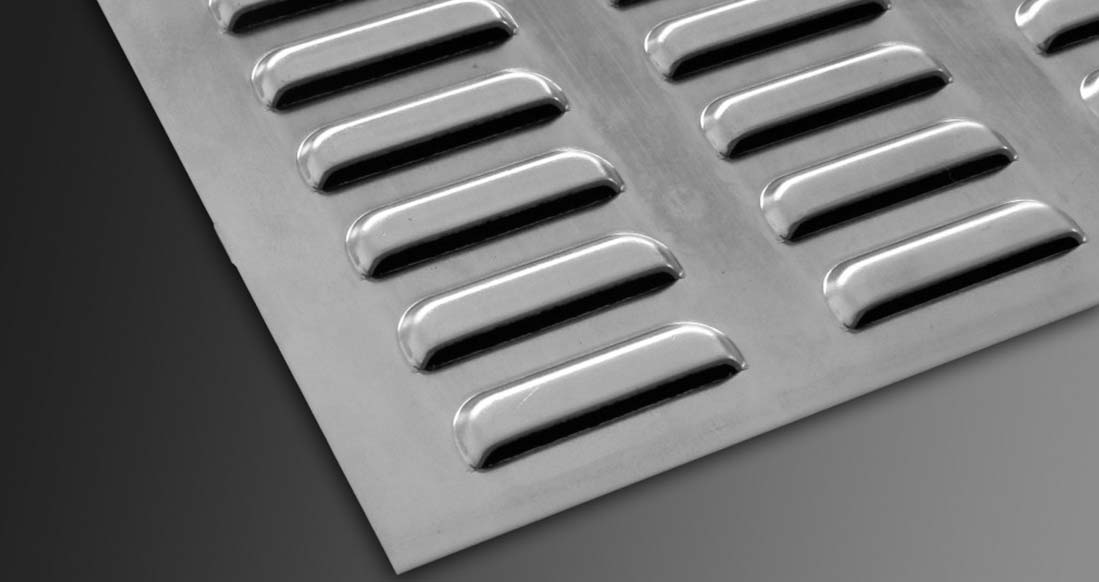

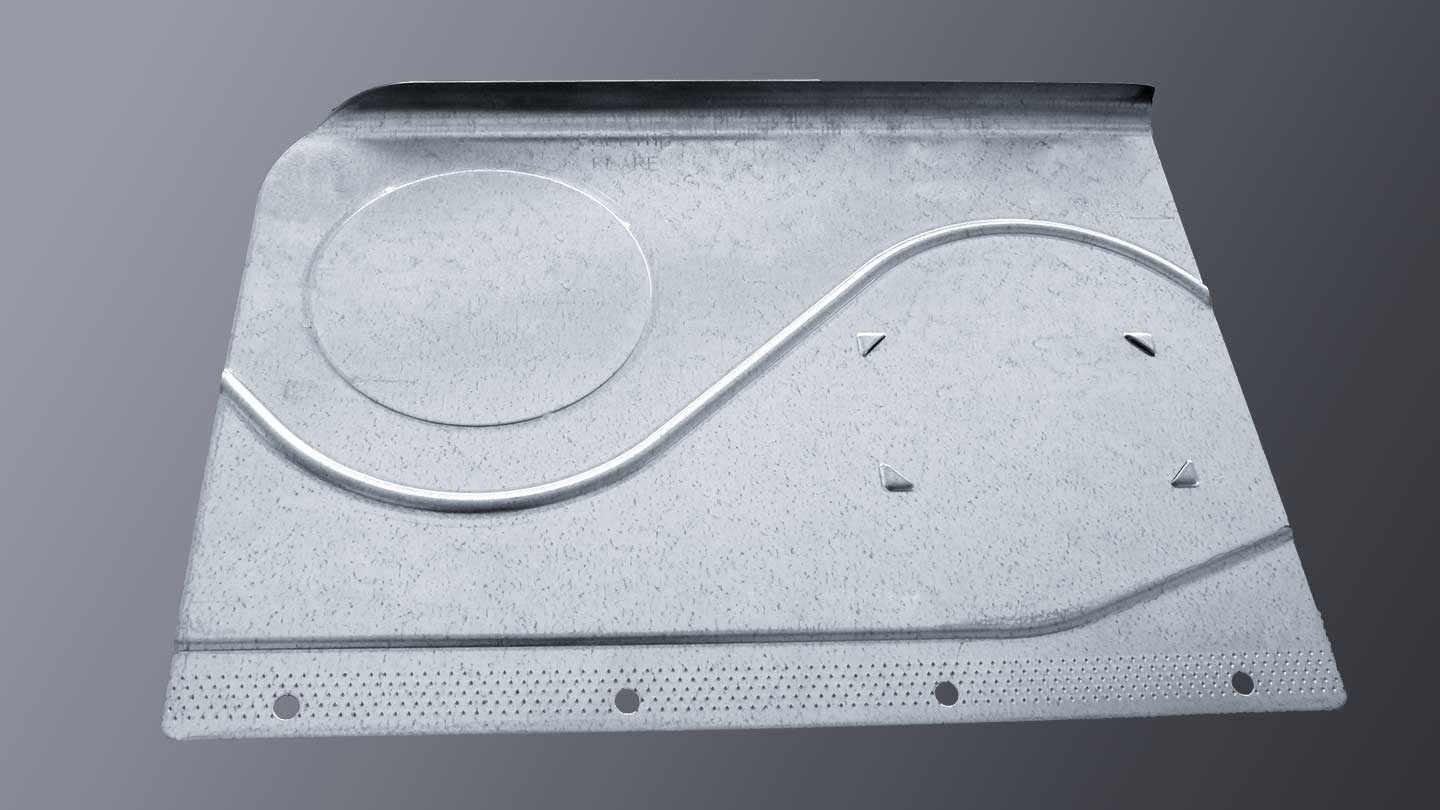

TP Alpha has an incredible range of advanced features which are already integrated. Among them is the wheel tool management, which allows you to create ribs, bent edges and complex shapes on the sheet metal.
SPEEDY Setup
The world’s fastest tool change system
For a single-punch CNC punching machine, tool change speed is an essential requirement, that’s why TP Alpha is equipped with the fastest and simplest tool change system on the market: the SPEEDY Setup. It takes just 12 seconds to set up the tool on the punching machine.
Interface
The most user-friendly
TP Alpha is the easiest to use punching machine thanks to its three different modes of operation: manual, semi-automatic and automatic. You can program it directly from the machine control panel using the graphic software TECNOCAM. The 18,5-inch FANUC touch-screen display and the customized HMI (Human Machine Interface) make the use of the machine even more immediate.
Shape larger formats smoothly

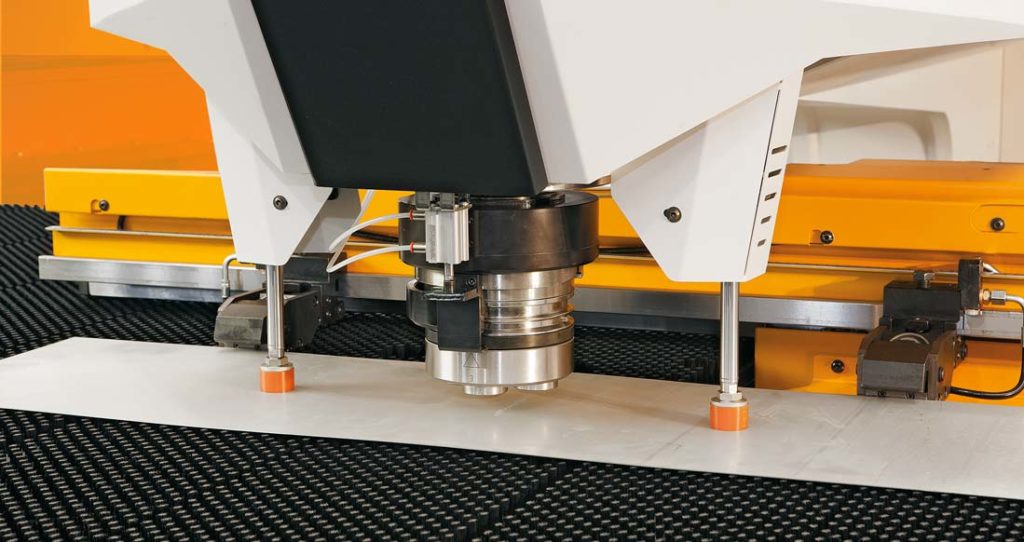

Automatic metal sheet repositioning
This system makes it possible to process metal sheets that are larger than the X axis and it allows more than one repositioning of the sheet metal during the working process.
The punching and the movement of the axis are performed manually, using the pedal and the joystick installed on the control panel.
Automatic axis movement (as programmed) and manual punching, using the pedal.
Once the program has been realized with the graphic software TECNOCAM, punching operations and axis movement are automatic.
It is equipped with an advanced servo drive punching unit without any hydraulic oil, thus ensuring low energy consumption.
TECNUMERIK is equipped with components provided by the world leader FANUC (CNC, motors, drives and PCs). FANUC guarantees the availability of spare parts for 25 years and offers assistance in 108 countries thanks to its extensive network of subsidiaries.
TECHNOLOGY punching machines have always been equipped with the best punching tools. TECNUMERIK can be equipped with TRUMPF style tools but is totally compatible with TECHNOLOGY style tools.
Create programs in few minutes
Thanks to the TECNOCAM software installed on the punching machine, programs can be created quickly and intuitively via the 18,5-inch display.
Automate your punching machine with Multi-tools
With the Multi-tool, the single-punch becomes a small automatic machine. You can switch from a single-tool station to one that can run up to 10 tools. Thanks to the integrated auto-index system, each tool, including those set up in the Multi-tool, can rotate from 0° to 360°.
1
AUTO-INDEX TOOLS
1
AUTO-INDEX TOOLS
1
AUTO-INDEX TOOLS
1
AUTO-INDEX TOOLS
Fiorella Sartori - Italy
What our customers say
Despite the use of a laser cutting machine, why still the punching machine? “Simply because it is simply UNIQUE. Not only because it is possible to make deformations that the laser does not allow, but also because it is able to create grids that, if made with the laser, would increase the cost of the finished piece at the expense of competitiveness”.
