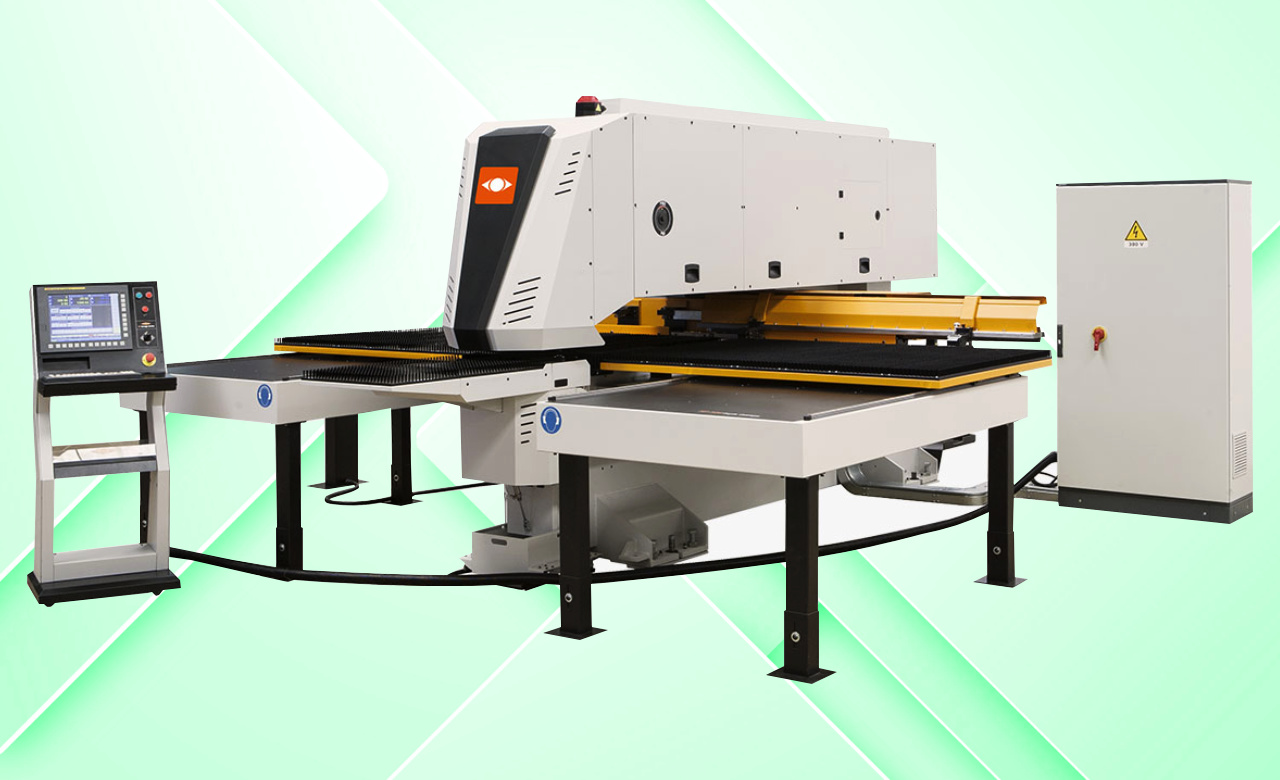

TecnoPunch Beta

THE FIRST LEVEL OF AUTOMATIC PUNCHING MACHINES

It is suitable for own productions such as panelboards, security doors, ventilation systems and so on. It is the perfect trade-off between cutting-edge technology and price. Automatic and compact, with low energy consumption, versatile and efficient. Station set-up in 12 seconds, tool change during program operation in 3 seconds.
The punching machine representing the meeting point between the single-punch and the automatic machines suitable for large productions.
Download e-Catalog
Download Datasheet
e-Catalog
Datasheet

MODEL

  • TECNOPUNCH
  • Working size (without reposition)
  • Working size (with a repositioning)
  • Max. punching force
  • Maximum thickness
  • Beta 258 U.M.
  • 1250 x 2000 mm
  • 1250 x 4000 mm
  • 250 kN
  • 6,5 mm
  • Beta 266 U.M.
  • 1500 x 1500 mm
  • 1500 x 3000 mm
  • 250 kN
  • 6,5 mm
  • Beta 268 U.M.
  • 1500 x 2000 mm
  • 1500 x 4000 mm
  • 250 kN
  • 6,5 mm
GET A QUOTE

ACTION VIDEO

GET A QUOTE

TECNOPUNCH

The ultimate expression of punching

The time has come for a change and go beyond the limits of the old turret punch press concept. TECNOPUNCH technology is the most innovative in the world of punching machines.

Combining simplicity, innovation, performance and productivity at best.

TECHNOPUNCH PUNCHING MACHINES

The possibility of rotating any tool from 0° to 360° reduces the number of tools to be purchased and shortens processing times. Sheet metal waste is reduced to a minimum thanks to complex nesting operations.
The punch press configuration can be customized by inserting any type of tool in each station. The innovative Speedy Setup system enables to equip every single station in just 12 seconds.
It allows you to process sheets that are larger than the punching machine’s working area, and to load them both frontally and sideways.

TURRET PUNCHING MACHINES

This implies buying several tools already oriented, complicating machine programming, slowing down production times and increasing the amount of material waste.
The turret configuration is fixed and cannot be customized. It takes more than 1 minute to equip every single station.
It does not allow the processing of sheets larger than the working area of the punching machine and the sheets can only be loaded sideways.

CNC functions are included in the standard equipment

All TECHNOLOGY punching machines are manufactured to offer the highest level of performance. For this reason all advanced CNC functions are included and no later activation is required
  • Emboss
  • Fine contouring
  • De-burring
  • Forming
  • High speed forming
  • Bending
  • Marking
  • Coin
  • Tapping
  • Engraving

Highest connectivity and integration

Teleassistance

With a simple Internet connection we can safely carry out a comprehensive error diagnosis, drastically reducing machine downtime.

Industry 4.0 Ready

Thanks to its technologies, the new TP Beta can be integrated into Industry 4.0 systems.

  • Automatic sheet metal repositioning

    This system allows you to work metal sheets which are larger than the X-axis stroke and enables you to perform more than one repositioning during production.

  • 18,5″ touch-screen monitor

    The touch-screen monitor together with customized HMI (Human Machine Interface) simplify input operations.

  • Sheet metal load on three sides.

    Lateral and frontal metal sheet loading, with the opportunity to process non-standard metal sheets also on the Y-axis.

SPEEDY Setup

The world’s fastest tool change system

The Speedy Setup technology applied to the TP Beta allows you to equip every single station with the tool in just 12 seconds.
GET A QUOTE

Smart System

A smart, versatile and space-saving system

Smart Turret is the only compact and versatile automatic tool changing system on the market. Its 5 stations are all equipped with auto-index technology that allows the rotation of the tool from 0° to 360°. Smart Turret offers a customized configuration and exploits the Speedy Setup system to equip every single station in just 12 seconds.

High power and low energy consumption

1
Tons OF POWER
1
Kw STAND-BY CONSUMPTION
1
MONTHS WARRANTY

TP Beta

Servo drive is better

It is equipped with an advanced servo drive punching unit without any hydraulic oil and with low energy consumption.
  • Motor FANUC
  • Fully programmable Stroke, Speed, Accelaration and Punch Penetration
  • NO Hydraulic Oil
  • Funzione SoftPunch function to reduce noises
  • DualCam allows high-frequency sheet metal processing without motor overheating

Other major technologies

CNC Fanuc
TP Beta is equipped with components provided by the world leader FANUC (CNC, motors, drives and PCs). FANUC guarantees the availability of spare parts for 25 years and offers assistance in 108 countries thanks to its extensive network of subsidiaries.
Punching Tools
TECHNOLOGY punching machines have always been equipped with the best punching tools. TP Beta can be equipped with TRUMPF style tools but is totally compatible with TECHNOLOGY style tools.

A more efficient way of working

The advanced integrated auto-index system allows any tool to be oriented from 0° to 360°, with an accuracy of 0.01°. Thus the number of tools to be purchased is drastically reduced. Programming the punch press has never been easier, as well as performing complex nesting to optimize sheet metal waste.

Customize the configuration of the turret tool change system

The TP Beta punching machine is equipped with TRUMPF or TECHNOLOGY-style tools. You can choose one of the available configurations or customize each station with standard, special and/or multi-tool tools.
DA
1
AUTO-INDEX TOOLS
A
1
AUTO-INDEX TOOLS
