TecnoPunch Zeta XL

WHEN SIZE MATTERS

One of the key features of TECHNOLOGY Italiana is the huge working area, which allow the processing of over-size sheet metal by repositioning, and enable to achieve incomparable results. It shares with TP Zeta all the advantages of the vertical turret: highest accessibility and versatility, as well as all the innovative technology of TECNOPUNCH machines.
A great machine, for large-scale production
Download e-Catalog
Download Datasheet
e-Catalog
Datasheet

MODEL

  • TECNUMERIK
  • Working size
  • Working size (with reposition)
  • Max. punching force
  • Max. thickness
  • Simoultaneus axis speed
  • Max punching frequency - step 1 mm
  • Max punching frequency - step 25,4 mm
  • Zeta 3612 U.M.
  • 1500 x 4000 mm
  • 1500 x 8000 mm
  • 220/300 kN
  • 6,5 mm
  • 89 m/min
  • 950 stroke/min
  • 380 stroke/min
GET A QUOTE

ACTION VIDEO

GET A QUOTE

TECNOPUNCH

The ultimate expression of punching

The time has come for a change and go beyond the limits of the old turret punch press concept. TECNOPUNCH technology is the most innovative in the world of punching machines.

Combining simplicity, innovation, performance and productivity at best.

TECHNOPUNCH PUNCHING MACHINES

The possibility of rotating any tool from 0° to 360° reduces the number of tools to be purchased and shortens processing times. Sheet metal waste is reduced to a minimum thanks to complex nesting operations.
The punch press configuration can be customized by inserting any type of tool in each station. The innovative Speedy Setup system enables to equip every single station in just 12 seconds.
It allows you to process sheets that are larger than the punching machine’s working area, and to load them both frontally and sideways.
The strategic position of the Vertical Turret allows for more complex deformation operations. In addition, the operator has better visibility of the sheet metal being worked thanks to a much clearer working area.

TURRET PUNCHING MACHINES

This implies buying several tools already oriented, complicating machine programming, slowing down production times and increasing the amount of material waste.
The turret configuration is fixed and cannot be customized. It takes more than 1 minute to equip every single station.
It does not allow the processing of sheets larger than the working area of the punching machine and the sheets can only be loaded sideways.
The excessive size of the traditional turret and its non-functional position restrict the range of operations that can be carried out and affect the visibility of the working area.

DUALCAM

Uncompromising high frequency processing

Thanks to the exclusive DualCam technology, you will never again face problems of motor overheating during high frequency processing (e.g. perforated sheet metal, nibbling).

The versatility of

TP Zeta XL

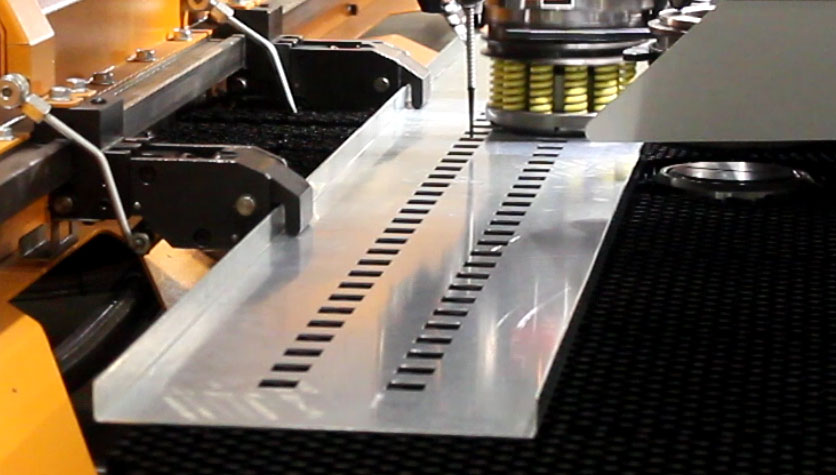

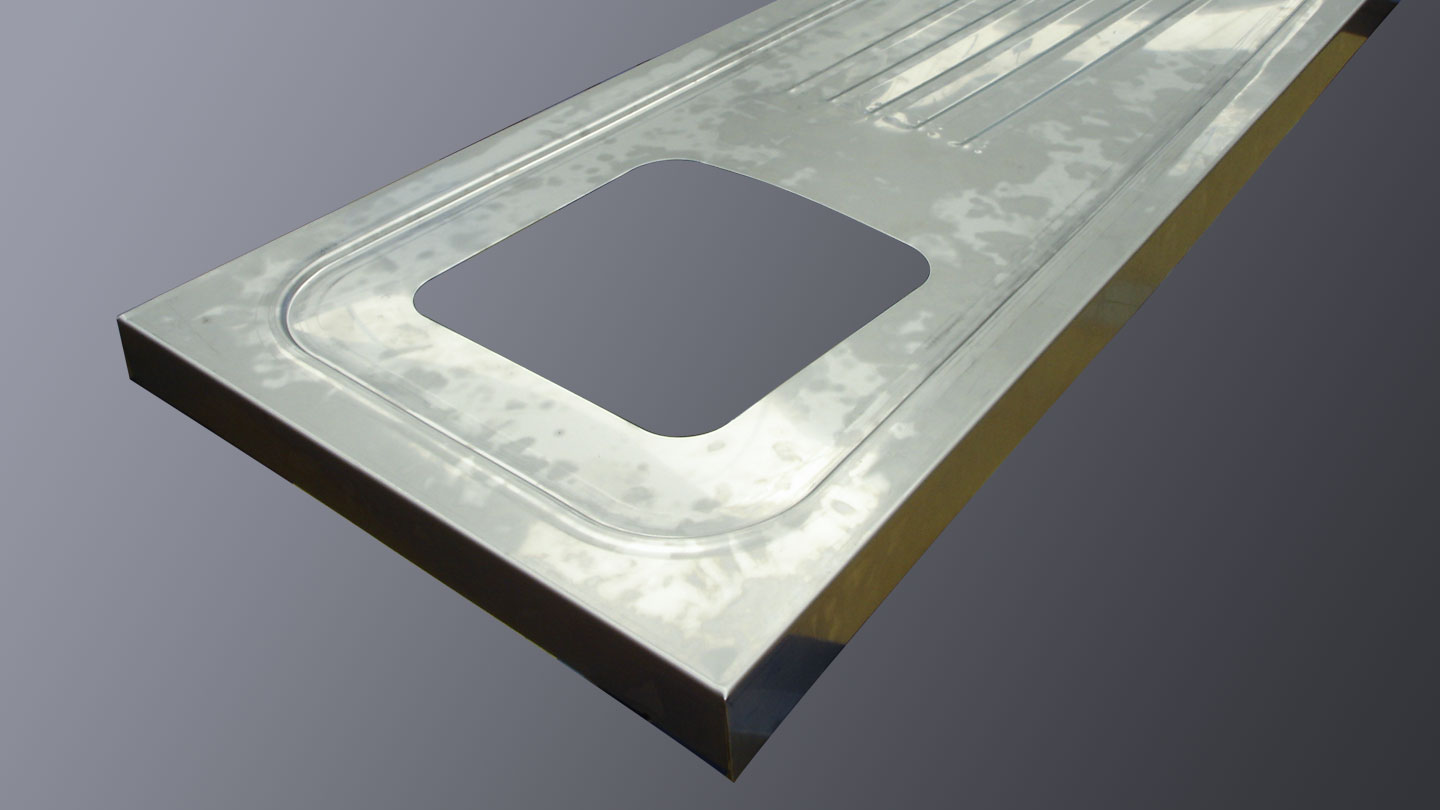

You can create complex nesting, special works such as ribs, dimples, threads and processing on heavy thicknesses (6 mm iron), corrugated sheet metal, panels with already bent edges and much more. Productivity and versatility at the highest levels.

Get a quote or contact us

...

We can provide you with suggestions and explanations in English, Turkish, Russian.

TP Zeta XL

Unique and groundbreaking

The Vertical Turret stands out from any other automatic tool change technology. Worldwide patented, it has auto-index technology for all tools, allows a customized configuration and is equipped with the Speedy Setup system to set up each station in just 12 seconds.

  • The highest level of accessibility

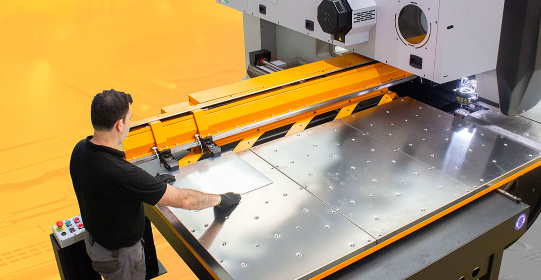

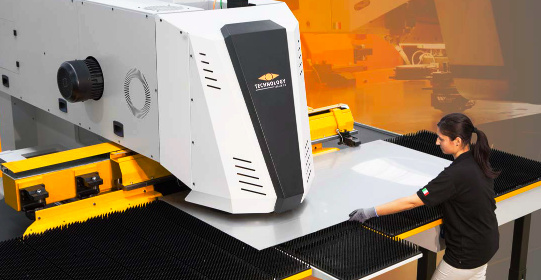

    The loading of the sheet metal can be easily carried out on three sides. The front side is for loading large sheets that go even beyond the length of the Y-axis. The lateral side is for loading small sheets in an easy way.


  • Side loading


  • Frontal loading

  • 18,5″ touch-screen monitor

    The touch-screen monitor together with customized HMI (Human Machine Interface) simplify input operations.

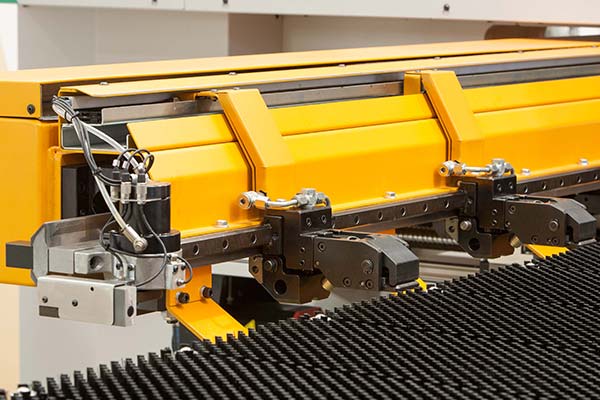

  • Automatic sheet metal clamps

    Thanks to the automatic sheet metal clamps, you only need to set their location via software and the machine will automatically position them. (Optional)

Save in

Best punching tools

TECHNOPUNCH punching machines have always been equipped with the best punching tools. TP Zeta XL can be equipped with TRUMPF style tools but is totally compatible with TECHNOLOGY style tools.
TRUMPF-style tools have many advantages over turret tools like AMADA. They are significantly smaller, lighter and easier to handle, but above all, they allow you to save money. Save in:
Length 63%
Weight 73%
Price 69%

TP Zeta

Servo drive is better

It is equipped with an advanced servo drive punching unit without any hydraulic oil and with low energy consumption.
  • Motor FANUC
  • Fully programmable Stroke, Speed, Accelaration and Punch Penetration
  • NO Hydraulic Oil
  • Funzione SoftPunch function to reduce noises
  • DualCam allows high-frequency sheet metal processing without motor overheating

TP Zeta

Automation

For a single-punch the tool change speed is essential, that is why TECNUMERIK is equipped with the SPEEDY Setup system, which is the fastest and simplest system on the market. It takes only 12 seconds to set up the tool on the machine.
GET A QUOTE

Customize the configuration of the Vertical Turret

The TP Zeta XL turret punching machine features TRUMPF or TECHNOLOGY style tools. You can choose one of the available configurations or customize each single station with standard, special and/or multi-tool tools.
